solar mounting system

Solar mounting system is a structure used to install, fix and support solar photovoltaic modules. The core function is to ensure that the photovoltaic modules are at the right angle and position to ensure the maximum solar radiation and improve the power generation efficiency.

C-shaped steel and solar mounting system

The solar mounting system is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system. Its main function is to support the solar modules so that they can receive solar radiation at the right angle and direction, thereby improving the efficiency of photovoltaic power generation.

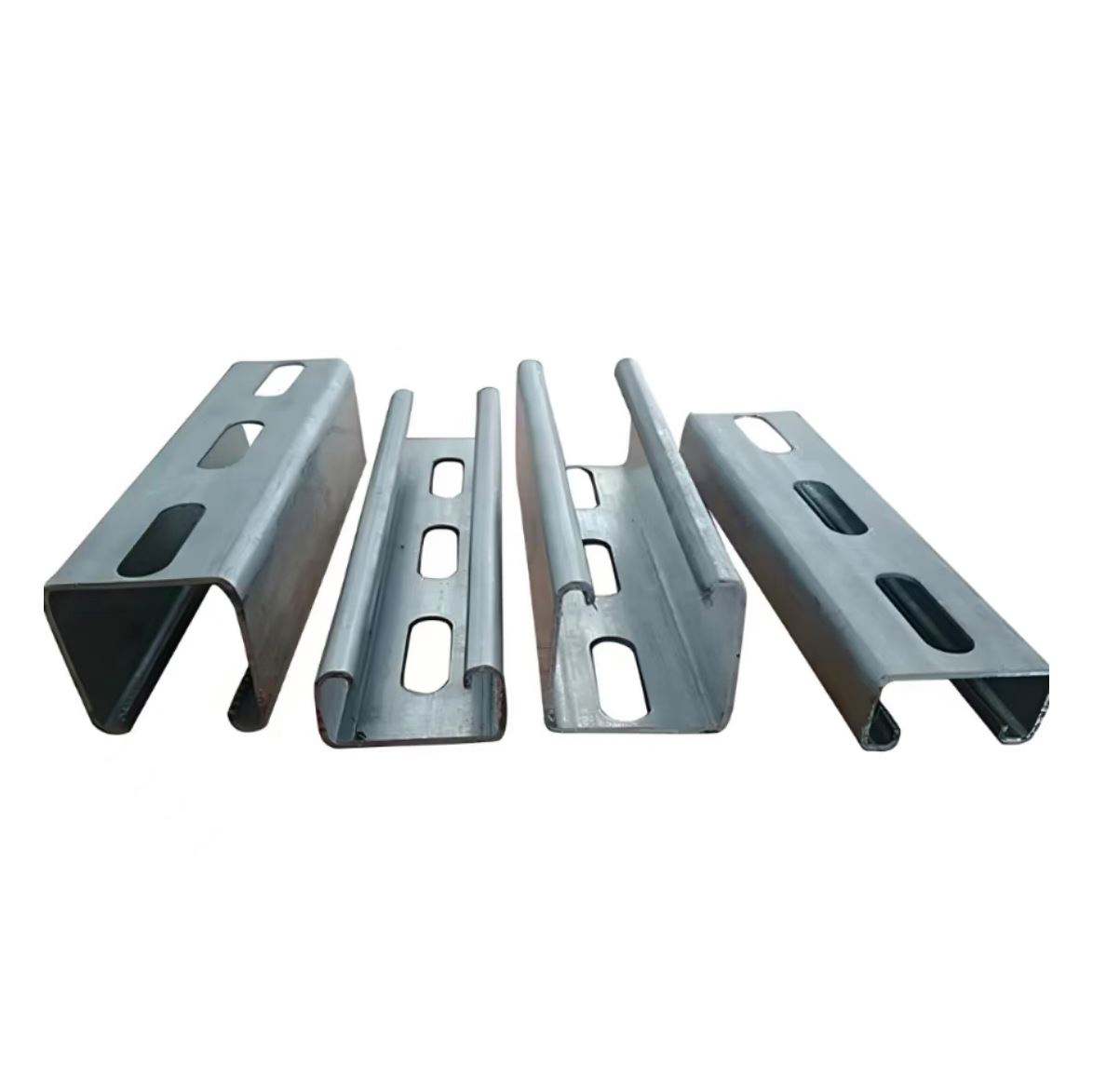

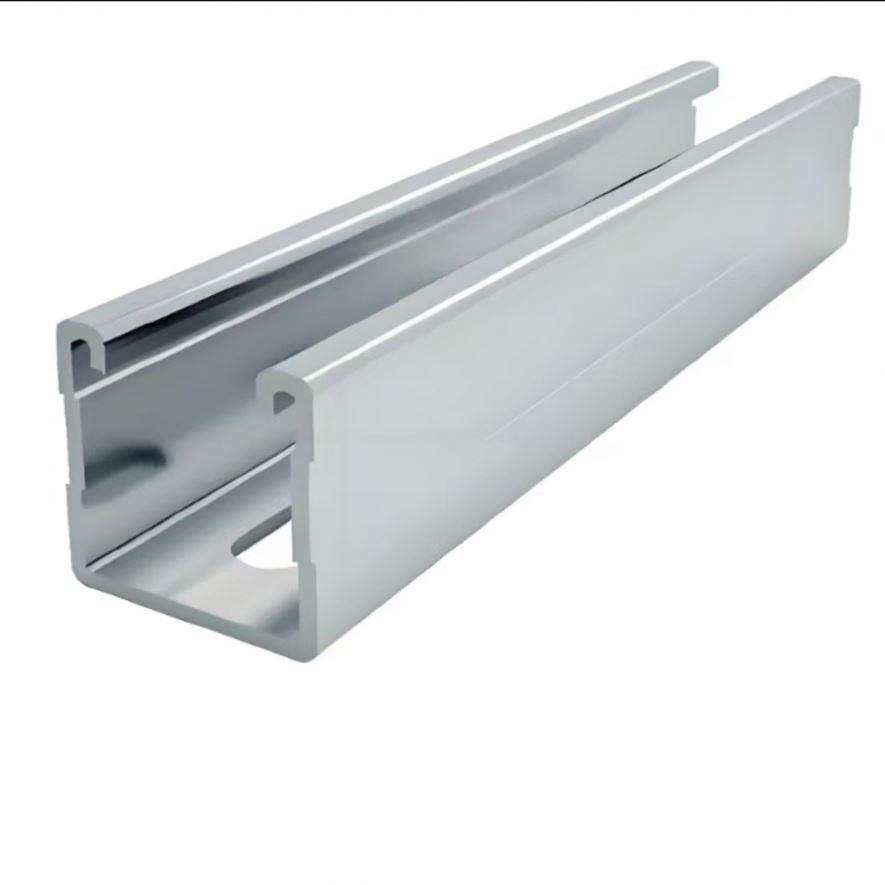

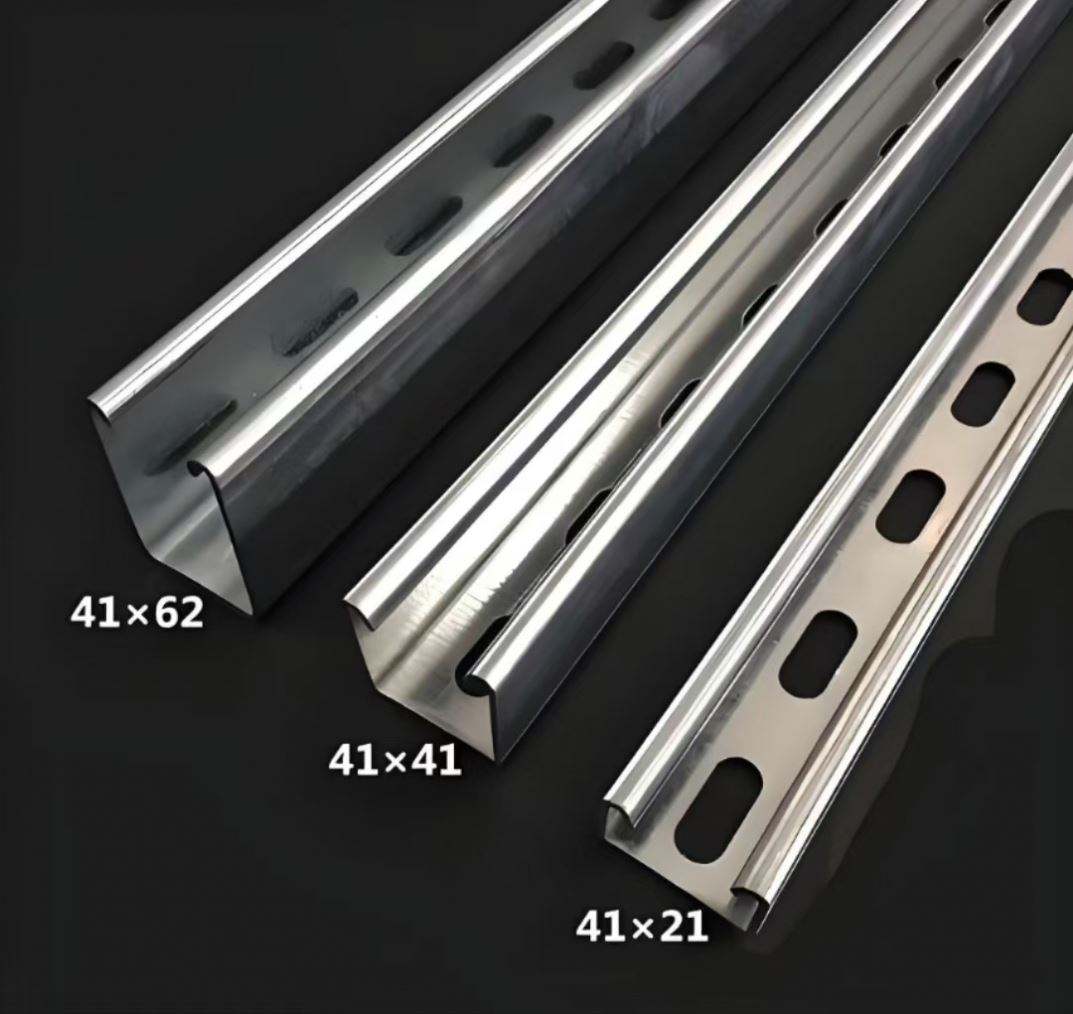

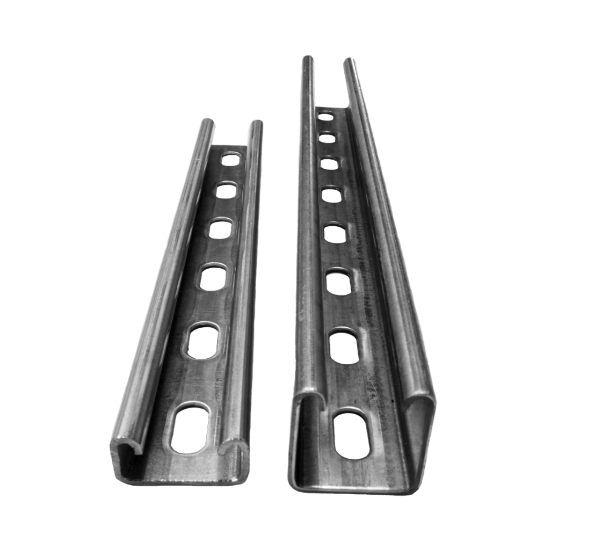

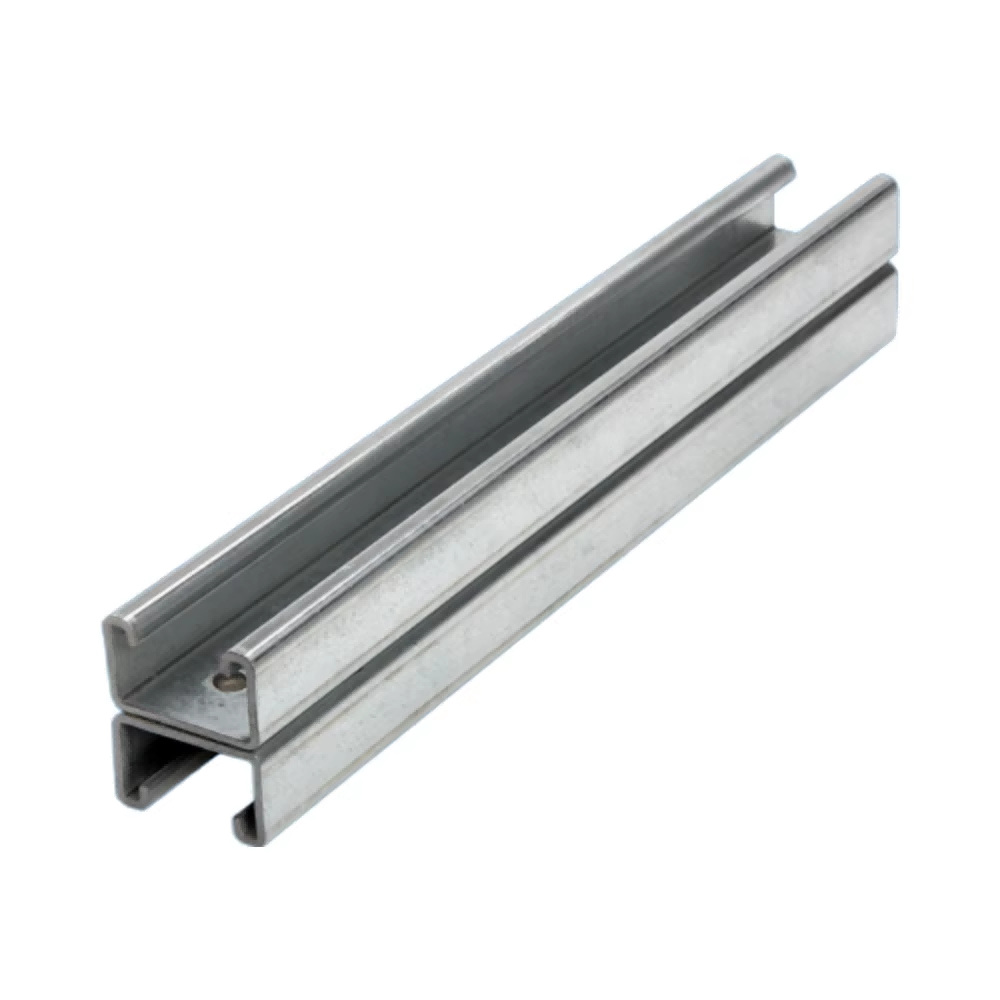

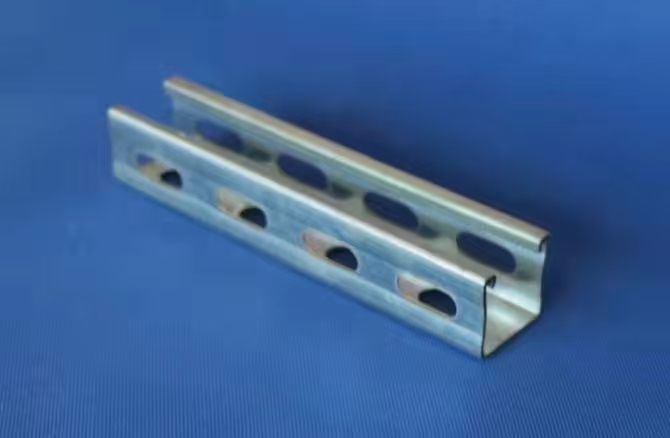

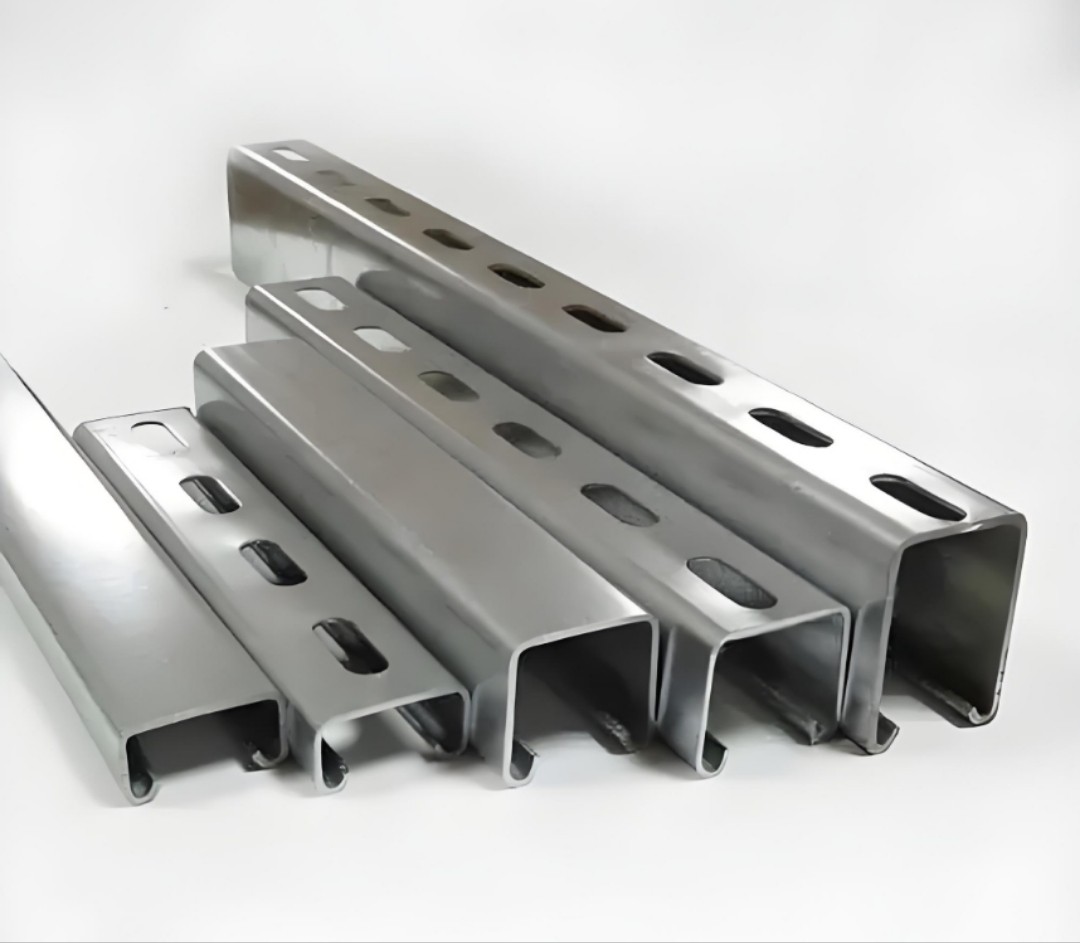

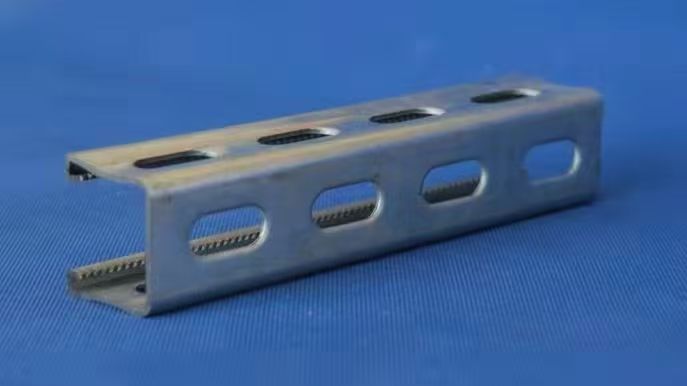

And C-shaped steel is a commonly used steel material in photovoltaic brackets. Photovoltaic bracket C-shaped steel usually needs to have the characteristics of high strength, corrosion resistance, and easy processing to ensure the long-term stability and safety of photovoltaic brackets.

HY adheres to the spirit of craftsmanship and strictly controls quality. The C-shaped steel purlin machine produced by our company provides a convenient and fast photovoltaic bracket production line for the majority of construction manufacturers.

Types of solar mounting system

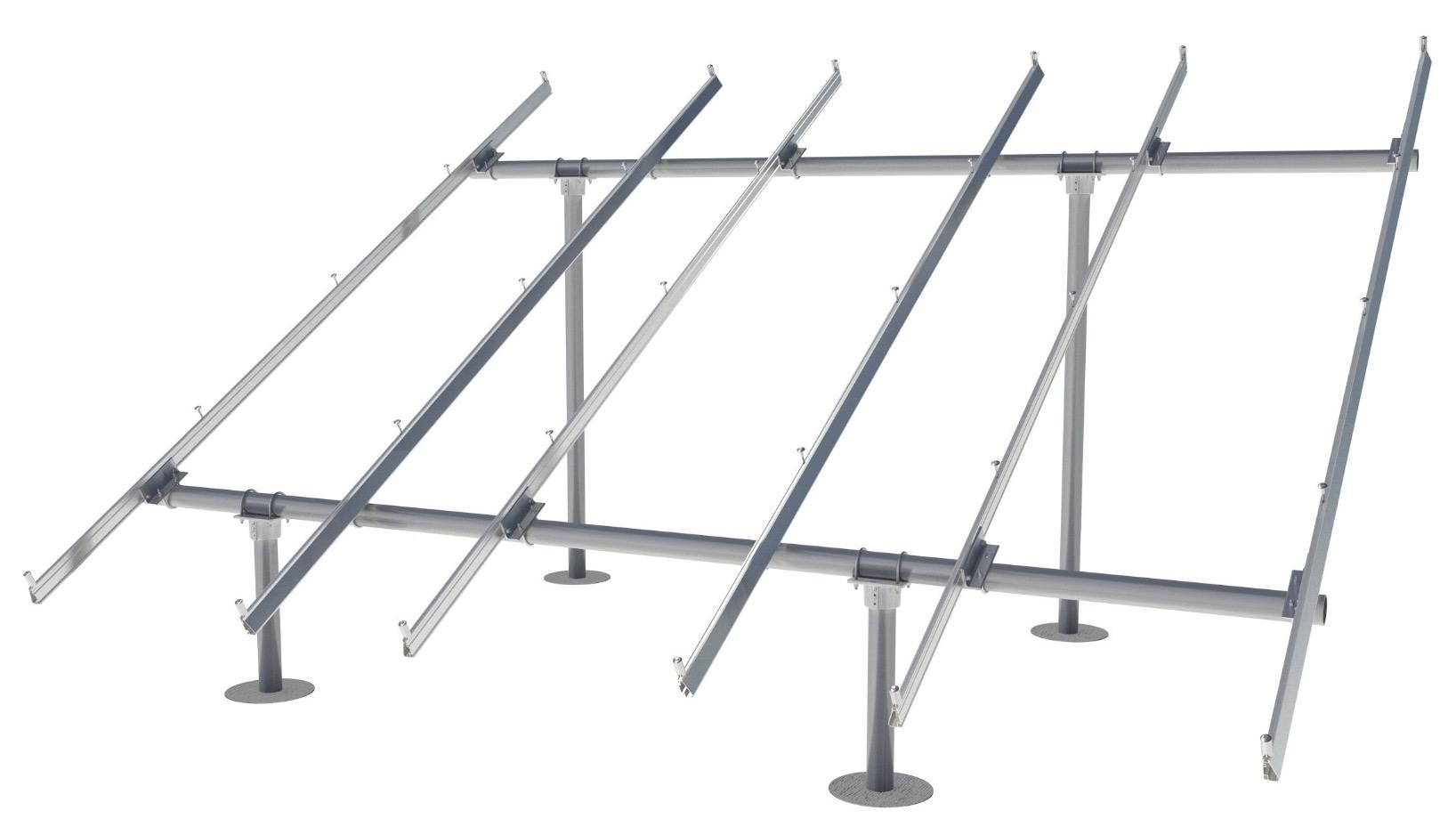

Depending on the differences in installation environment and purpose, photovoltaic brackets can be divided into many categories, mainly covering ground brackets, roof brackets, column brackets, carport brackets, etc.

According to the foundation type of photovoltaic bracket, it can be divided into concrete foundation, spiral pile foundation, pile foundation, cement block foundation, and steel structure foundation.

Reinforced concrete foundation: A foundation made of steel bars and concrete, used to fix and support photovoltaic brackets, ensuring that photovoltaic modules can operate safely and stably under various climatic conditions. Because reinforced concrete foundations have high strength and good durability, they have been widely used in large-scale projects such as ground photovoltaic power stations.

Spiral pile foundation: The spiral metal piles are screwed into the ground to provide stable support for photovoltaic brackets. Spiral pile foundations are favored for their advantages such as quick installation and low environmental impact. The components can be divided into spiral pile bodies and connecting parts. The pile body is spiral with spiral blades at the end, which is conducive to providing adhesion and stability when screwed into the ground.

Piling foundation: The pile foundation of the photovoltaic bracket is a foundation form that supports and fixes the photovoltaic bracket by driving the pile into the ground. It has the advantages of high bearing capacity and stability, is suitable for various geological conditions, and is widely used in large photovoltaic power stations. The pile body is usually made of high-strength steel and is treated with anti-corrosion (such as hot-dip galvanizing) to enhance durability.

Cement block foundation: By prefabricating or pouring cement blocks on the ground, the photovoltaic bracket is fixed on it to provide stable support for the photovoltaic module. This foundation form is widely used because of its simple construction, low cost and wide application range. The size of the cement block is determined according to the load requirements of the bracket and the photovoltaic module.

Steel structure foundation of photovoltaic bracket: The steel structure foundation has become an important foundation form in the construction of photovoltaic systems due to its high strength, stability and durability. Reasonable design and installation of steel structure foundation can not only improve the safety and stability of the photovoltaic system, but also adapt to various complex geological and climatic conditions and improve the comprehensive benefits of the project.

Why choose HY

HY has a special foreign trade quality inspection department. Each process has corresponding quality control standards, and all products will be inspected.

Professional design team and supporting proofing production group, support OEM and ODM customization services.

Fast delivery, proofing can be completed within 5 days.
